Manufacturer:
Type:
Protocoll:
Devicename:
Model_nr:
Version_nr:
Version_info:
Version_timestamp
Release:
ID
Min_mygekko_version:
Function_type:
Progress_state:

Description (HTML)

<p><strong>Alarm Server with Event Evaluation for Hikvision Cameras.</strong><br /> Outputs can, for example, be linked in the system <strong>LIGHT</strong> as motion detectors, as <strong>Detector Contacts</strong> in <strong>ALARM SYSTEM</strong>, or as buttons to trigger <strong>ACTIONS</strong>. Visualization is available in the System <strong>DEVICE</strong>.</p>
<p>Integration is designed for <strong>non-AcuSense models</strong>.<br /> Developed and tested with the following device, but other models should also work:<br /> <strong>Model:</strong> Mini Bullet DS-2CD2025FWD-I<br /> <strong>Firmware Version:</strong> V5.6.821 build 230831</p>
<p>The <strong>DDF interpreter</strong> identifies which camera or IP an event originates from and assigns it to the corresponding slave. Slaves are defined by <strong>DOMAIN/IP</strong>, for example: <code>192.168.1.10</code>, <code>192.168.1.15</code>, <code>192.168.1.16-19</code> or similar.</p>
<p>In the <strong>SLAVE</strong> section, you can assign individual aliases for each camera, such as: <strong>CAM1, CAM2, CAM3&hellip;</strong></p>
<p><strong>To configure the cameras:</strong></p>
<ol>
<li>Navigate to <strong>Network &gt; Advanced Settings &gt; HTTP Listening</strong></li>
<li>Set the <strong>Destination IP</strong> to the IP address of your Controller</li>
<li>Set the <strong>Port</strong> to <code>8501</code></li>
</ol>
<p>&nbsp;<span style="font-weight: 400;">You can access the camera&rsquo;s web interface locally through the Viewer by clicking the "URL" button</span></p>
<p><code></code><a href="https://drive.google.com/drive/folders/1uZLAhWPp9fYncv6T47_DCc-uEqXoq10j?usp=sharing">Shared Folder</a></p>

Note

from

Device Images

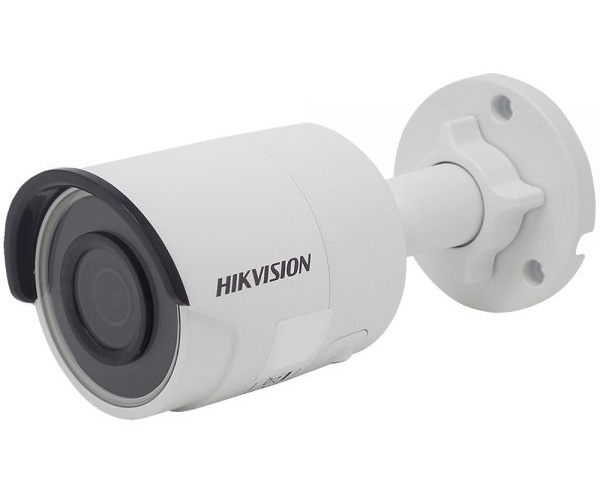

Detail view (400x400px)Hikvision_Bullet.jpg

Tile view (200x200px)Event-Recognition_Hikvision_tile.jpg

Download SignedFile: Hikvision.Camera.REST-API (DDF).Alarm Server & Events.1(0x0D00006F00020100).csvRef: master

INDEX	ALIAS	NAME	UNIT
0	EVENT_COUNTER	Event Counter	number
1	MOTION	Motion	1=active
2	TAMPERING	Tampering	1=active
3	SCENE_CHANGE	Scene Change	1=active
4	FACE_DETECTION	Face Detection	1=active
5	INTRUSION	Intrusion	1=active
6	LINE_CROSSING	Line Crossing	1=active
7	UNATTENDED_BAGGAGE	Unattended Baggage	1=active
8	OBJECT_REMOVAL	Object Removal	1=active
40	REGION_ID	Region ID	number
41	SENSITIVITY_LEVEL	Sensitivity	number
60	URL	URL	string
250	TIMESTAMP	Timestamp	number
251	QUALITY	Quality	1=ok
