General parameter

Note


Documents

EDMx-Modbus-TI-en-16.pdf

Device Description File

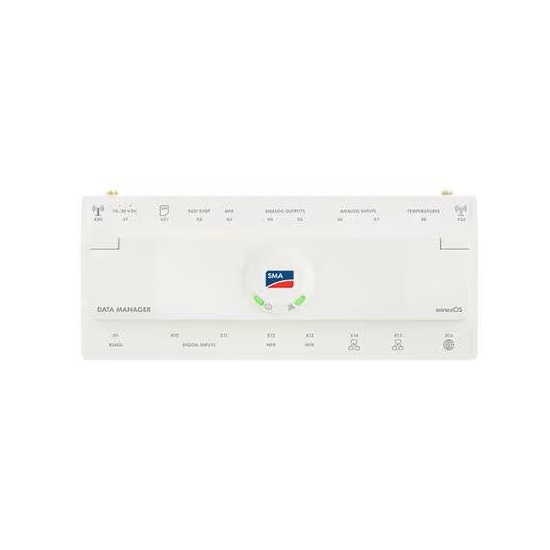

Data Manager[SMA]PV-Inverter MODBUS TCP(new) (0x0A00000B00010100).ddf

INDEX ALIAS NAME UNIT
0 UTC_SYSTEM_TIME UTC system time s
1 HEALTH_STATUS Health status Enum
2 ACCUMULATED_PV_POWER Accumulated PV power kW
3 TOTAL_ENERGY_YIELD Total yield Wh
4 DAILY_ENERGY_YIELD Daily yield Wh
5 CURRENT_PV_ACTIVE_P Current PV active P kW
6 REACTIVE_POWER Reactive power kVAr
7 BATTERY_SOC Battery SOC %
8 POWER_LIMIT_DIGITAL Power limit digital %
9 ANALOG_P_SETPOINT Analog P setpoint %
10 COMM_PV_LIMIT Comm PV limit %
11 DIRECT_MKT_PV_LIMIT Direct mkt PV limit %
12 MAX_ACTIVE_SETPT Max active setpt %
13 INTERNAL_PV_LIMIT Internal PV limit %
14 SYSTEM_ACTIVE_P System active P kW
15 SYSTEM_REACTIVE_P System reactive P kVAr
16 BATTERY_CHARGE Battery charge kW
17 BATTERY_DISCHARGE Battery discharge kW
18 TOTAL_BATTERY_CHG Total battery chg Wh
19 TOTAL_BATTERY_DIS Total battery dis Wh
20 GRID_FEED_L1_P Grid feed L1 P kW
21 GRID_FEED_L2_P Grid feed L2 P kW
22 GRID_FEED_L3_P Grid feed L3 P kW
23 GRID_FEED_L1_Q Grid feed L1 Q kVAr
24 GRID_FEED_L2_Q Grid feed L2 Q kVAr
25 GRID_FEED_L3_Q Grid feed L3 Q kVAr
26 VOLT_L1_L2 Volt L1 L2 V
27 VOLT_L2_L3 Volt L2 L3 V
28 VOLT_L3_L1 Volt L3 L1 V
29 AVG_GRID_V_L_N Avg grid V L N V
30 AVG_GRID_V_L_L Avg grid V L L V
31 DISP_POWER_FACTOR Disp power factor -
32 FREQUENCY Grid frequency Hz
33 VOLTAGE_L1 Volt L1 V
34 VOLTAGE_L2 Volt L2 V
35 VOLTAGE_L3 Volt L3 V
36 CURRENT_L1 Current L1 A
37 CURRENT_L2 Current L2 A
38 CURRENT_L3 Current L3 A
39 MAX_GEN_SYSTEM_P Max gen system P kW
40 AVAIL_INV_ACTIVE_P Avail inv active P kW
41 INT_PV_REACTIVE_LIM Int PV reactive lim %
42 AVAIL_UNDER_Q Avail under Q kVAr
43 AVAIL_OVER_Q Avail over Q kVAr
44 THEORETICAL_P_AVAIL Theoretical P avail kW
45 GEN_SYSTEM_AVAIL Gen system avail %
46 EXT_ACTIVE_LIMIT Ext active limit %
47 AVAIL_UNDER_Q Avail under Q %
48 AVAIL_OVER_Q Avail over Q %
49 AMBIENT_TEMP Ambient temp C
50 WIND_SPEED_MS Wind speed ms m/s
51 MODULE_TEMP Module temp C
53 AMBIENT_TEMP_F Ambient temp F F
54 AMBIENT_TEMP_K Ambient temp K K
55 MODULE_TEMP_F Module temp F F
56 MODULE_TEMP_K Module temp K K
57 WIND_SPEED_KMH Wind speed kmh km/h
58 WIND_SPEED_MPH Wind speed mph mph
59 DIGIN_GRP1_STATUS DIGIN grp1 status Enum
60 INVERTER_QUICK_OFF Inverter quick off Enum
61 DIRECT_MKT_P_SETPT Direct mkt P setpt %
62 MANUAL_P_LIMIT Manual P limit %
100 POWER_IMPORT Grid Power import kW
101 POWER_EXPORT Grid Power export kW
102 ENERGY_IMPORT Grid Energy import Wh
103 ENERGY_EXPORT Grid Energy export Wh
104 POWER_CHARGE Battery Power charge kW
105 POWER_DISCHARGE Battery Power discharge kW
106 ENERGY_CHARGE Battery Energy charge Wh
107 ENERGY_DISCHARGE Battery Energy discharge Wh
108 SOC Battery SoC %
109 POWER PV Power kW
110 ENERGY PV Energy Wh
111 POWER House Power kW
112 ENERGY House Energy Wh
113 POWER Grid Power import kW
114 ENERGY Grid Energy import Wh
115 POWER Grid Power export kW
116 ENERGY Grid Energy export Wh
117 POWER Battery Power charge kW
118 ENERGY Battery Energy charge Wh
119 POWER Battery Power discharge kW
120 ENERGY Battery Energy discharge Wh
121 POWER Grid Power import L1 kW
122 ENERGY Grid Energy import L1 Wh
123 POWER Grid Power import L2 kW
124 ENERGY Grid Energy import L2 Wh
125 POWER Grid Power import L3 kW
126 ENERGY Grid Energy import L3 Wh
127 POWER Grid Power export L1 kW
128 ENERGY Grid Energy export L1 Wh
129 POWER Grid Power export L2 kW
130 ENERGY Grid Energy export L2 Wh
131 POWER Grid Power export L3 kW
132 ENERGY Grid Energy export L3 Wh
200 QUALITY Quality
208 ERROR Error
210 POWER_UNIT Power Unit
211 ENERGY_UNIT Energy Unit
