DeviceLib für TEKKO

Technagon TEP4

Wallbox • MODBUS TCP (DDF)

Technagon

Description

Download Signed DDF min. OS version: 10365

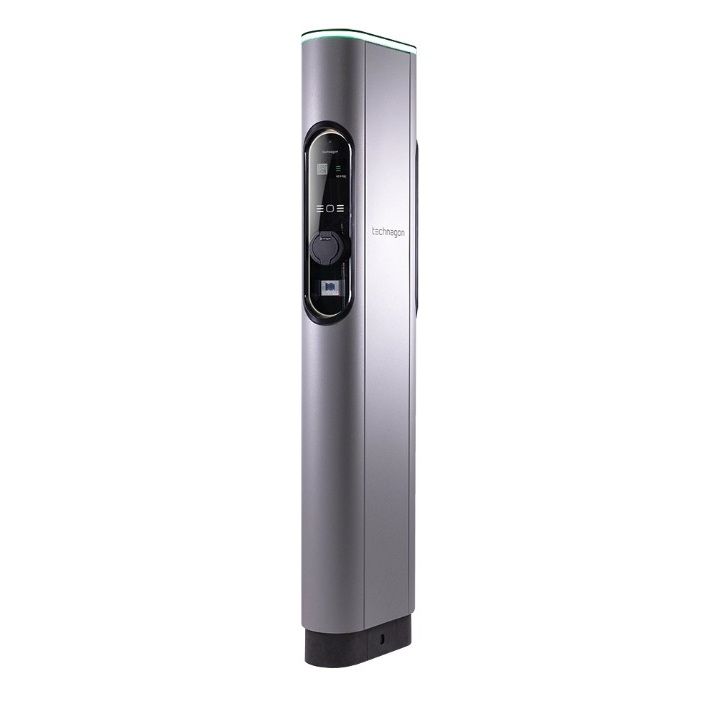

Device image

Product Description - TEP4 Integration via DDF

The integration of the Technagon TEP4 charging station as a DDF enables seamless integration of this AC charging infrastructure into intelligent building and energy management systems.

The TEP4 is a high-quality AC charging station with two charging points and a power output of up to 2 × 22 kW. It has been specifically developed for (semi-)public use and complies with both metrology regulations and AFIR requirements.

Smart Integration

Via DDF, the TEP4 is integrated as an intelligent device within the E-Mobil system. This allows charging processes, energy flows, and operating states to be centrally visualized, controlled, and automated.

Integration Features:

  • Monitoring of charging status and energy consumption
  • Control of charging enablement and charging power
  • Integration into energy management (e.g. PV surplus charging)
  • Integration with scenarios (e.g. peak load avoidance)
  • Visualization in the myGEKKO user interface

General Info

Manufacturer Type Protocol Model Version ID
Technagon Wallbox MODBUS TCP (DDF) 1 OS-2.3.1 (0.0.10) 0x0A00007F00010100

Documents

DDF Items

ID Name Unit Type Direction
0 CPS 65= A (no car), 66= B (car connected), 67= C (charging), 68= D (charging with ventilation), 69= E (error), 70= F (communication error) int IN
1 Voltage L1 V real IN
2 Voltage L2 V real IN
3 Voltage L3 V real IN
4 Current L1 A real IN
5 Current L2 A real IN
6 Current L3 A real IN
7 Charging Power kW real IN
8 Charging Energy Wh real IN
9 Current Set A real OUT
10 Power unit kW STRING IN
11 Energy unit Wh STRING IN
12 Phase int IN
13 Quality int IN
14 Phases available int IN
20 CPS CP2 65= A (no car), 66= B (car connected), 67= C (charging), 68= D (charging with ventilation), 69= E (error), 70= F (communication error) int IN
21 Voltage L1 V real IN
22 Voltage L2 V real IN
23 Voltage L3 V real IN
24 Current L1 A real IN
25 Current L2 A real IN
26 Current L3 A real IN
27 Charging Power kW real IN
28 Charging Energy Wh real IN
29 Current Set A real OUT
30 Power unit kW STRING IN
31 Energy unit Wh STRING IN
32 Phase int IN
33 Quality int IN
34 Phases available int IN
204 Info STRING IN
230 Debug int OUT
