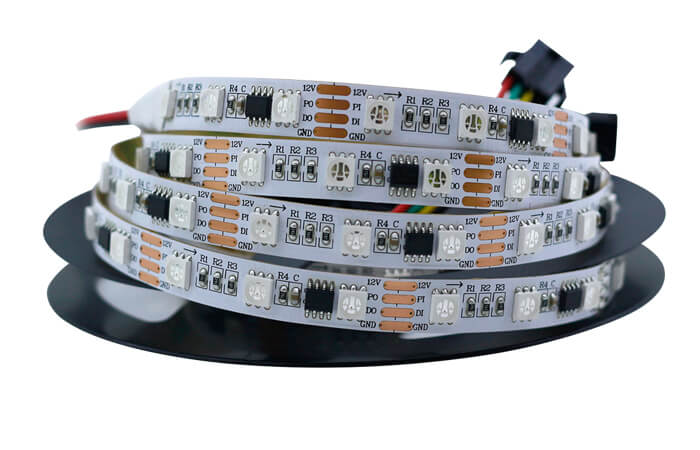

myGEKKO LEDSTRIP TYPE A

myGEKKO

Download Signed DDF

The DDF allows control of RGBW DMX512 LED strips.

Using the uploadable config.json file, the start address and the number of addresses can be defined for up to 5 groups. (Channels = addresses / 4 [RGBW])

The following effects can be selected and controlled independently for each of the 5 groups, either via IO variables or via the device element.

Effects:

ON-OFF
BLINK
PINGPONG
RUNNINGUP
RUNNINGDOWN
METEOR
RAINBOWFLOW
POSITION
FILL
AURORA

Manufacturer	Type	Protocol	Model	Version	ID
myGEKKO	Lamp	DMX512 (DDF)	1	RGBW	0x0F00000100010100

DMX_conf.json

ID	Name	Unit	Type	Direction
0	READOK
1	ON
2	EFFECT
3	RED
4	GREEN
5	BLUE
6	WHITE
7	LEVEL
8	RGBW
